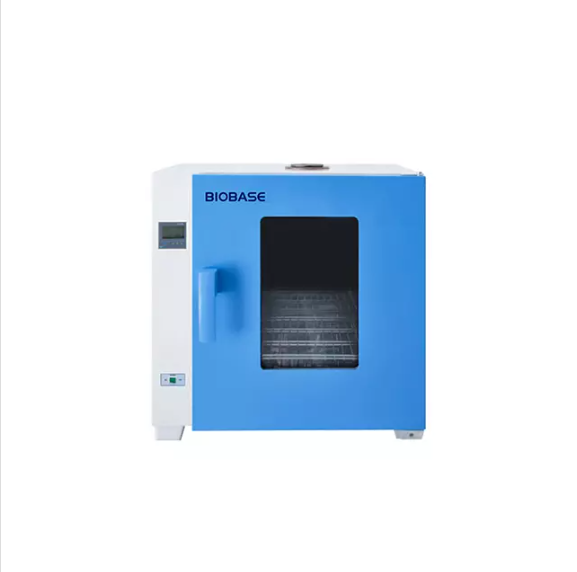

Constant-Temperature Drying Oven(BOV-TC)
Introduction:
It is suitable for drying samples of powders, insects and other tiny objects to avoid the samples flying up due to wind. This product is used for drying and melting wax of non-flammable and non-explosive items and non-volatile items in industrial and mining enterprises, colleges and universities, scientific research units, food processing, medical units and various laboratories.
Features:
1. The top air outlet switch is convenient.
2. With door observation window.
3. LED digital tube display P. I. D temperature controller, precise temperature control.
4. Continuous operation or timed operation.
5. With parameter memory function, automatic recovery operation when the call comes.
6. The inner box adopts arc structure design, which is easy to clean.
7. Pull-out movable shelves with adjustable spacing.
Technical Parameters:
Model | BOV-T30C | BOV-T70C | BOV-T140C | BOV-T270C |
Capacity | 42L | 70L | 137L | 270L |
Temp. Range | 50~200℃ | |||
Temp. Fluctuation | ±1℃ | |||
Temp. Uniformity | ≤Max temp.±3.5% | |||
Timing Range | 0~9999min | |||
Shelves | 2pcs | 3pcs | ||
Heating Method | Natural convection | |||
Standard Accessories | Shelf | |||
Optional Accessories | Shelf. Independent external temperature protection device. LCD screen temperature controller. LCD screen temperature controller+RS485 communication serial port. LCD screen temperature controller+micro dot matrix printer. RS485 to USB adapter. | |||
Power | 850W | 1000W | 2000W | 3000W |
Power Supply | AC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer) | |||
Internal Size(W*D*H) | 350*350*350mm | 400*390*450mm | 500*500*550mm | 600*600*750mm |
External Size(W*D*H) | 635*615*552mm | 680*653*631mm | 830*665*772mm | 930*765*972mm |
Package Size(W*D*H) | 770*630*690mm | 830*680*780mm | 920*750*900mm | 1020*850*1110mm |
Net Weight | 45kg | 54kg | 73kg | 106kg |
Gross Weight | 53kg | 64kg | 86kg | 125kg |
